Solar Setup

This project is still in development. The panels and batteries and whatnot are wired up and working, but I want to connect a battery monitor to my Pi to track its usage over time and see how much savings come from it.

The Plan

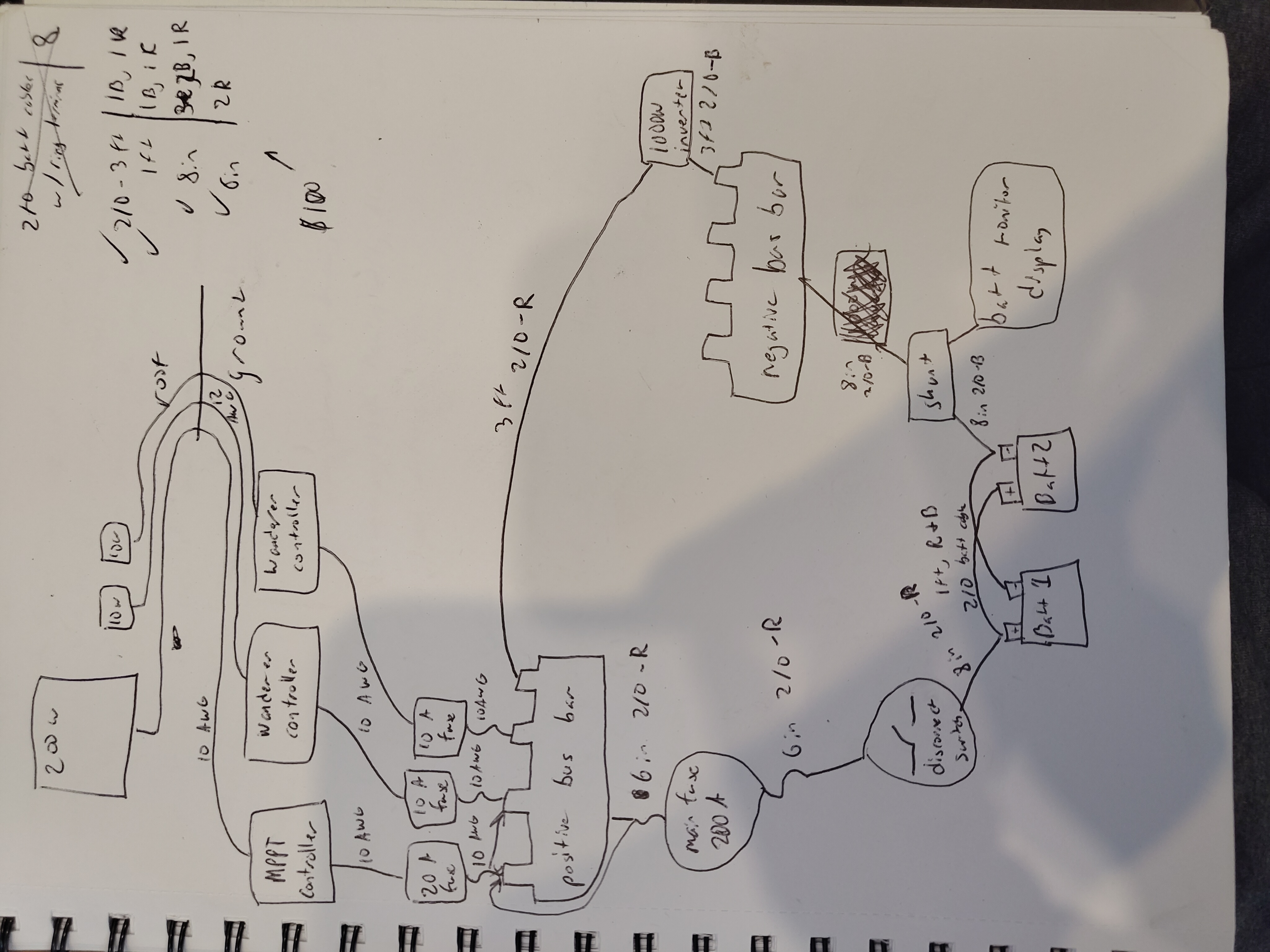

Hand-drawn plan for the solar setup

The Panels

240 watts total

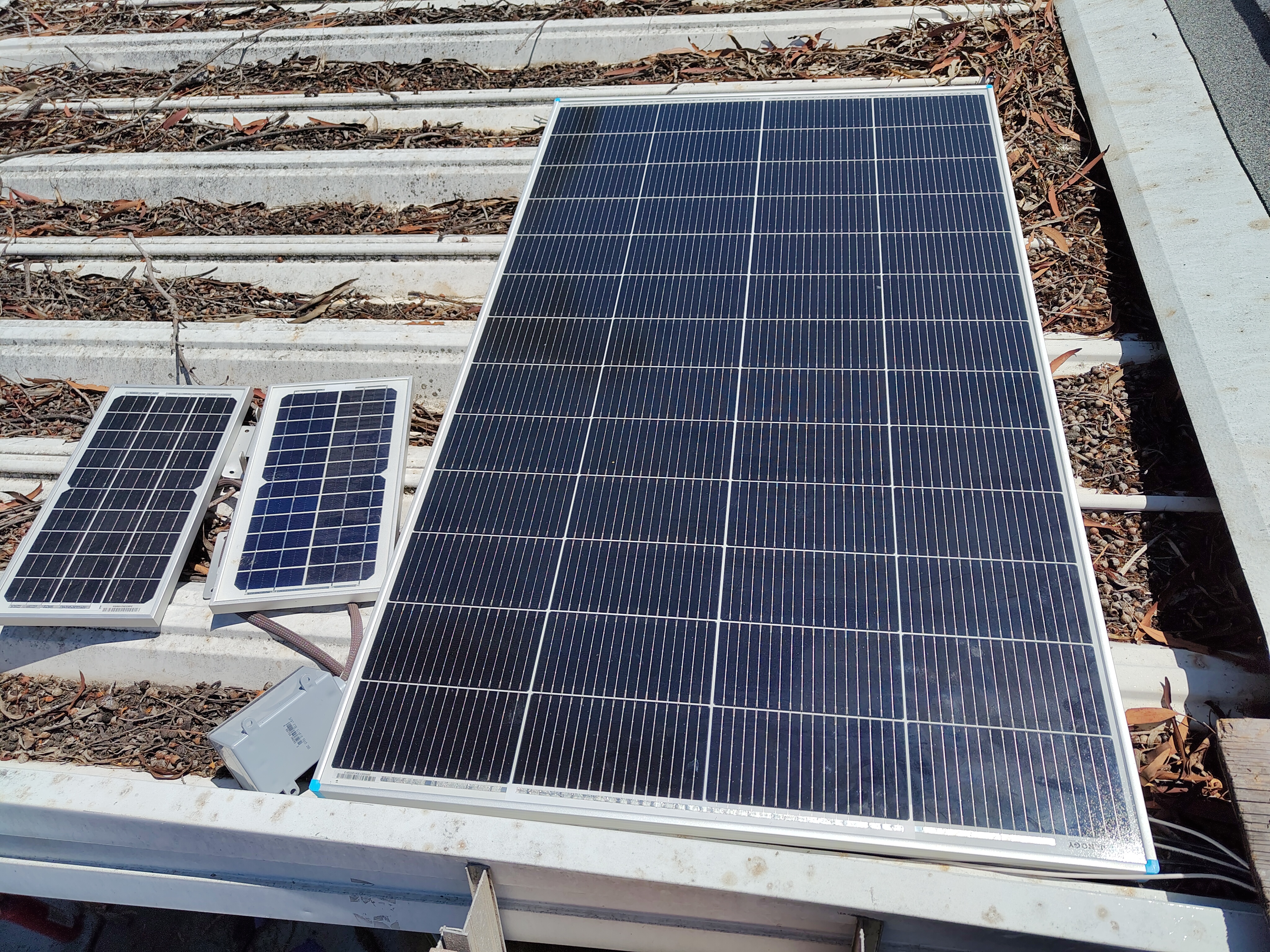

Solar panels

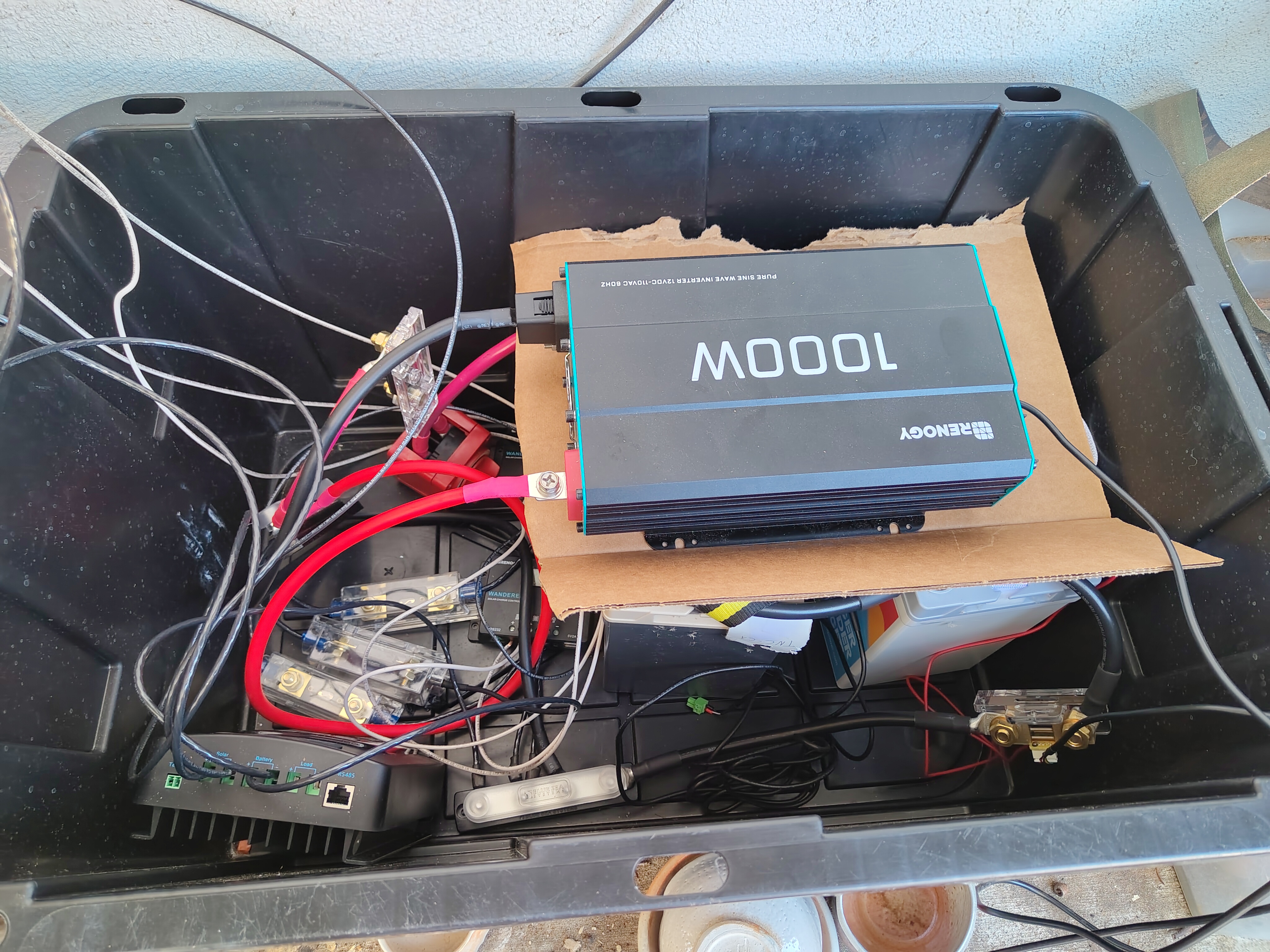

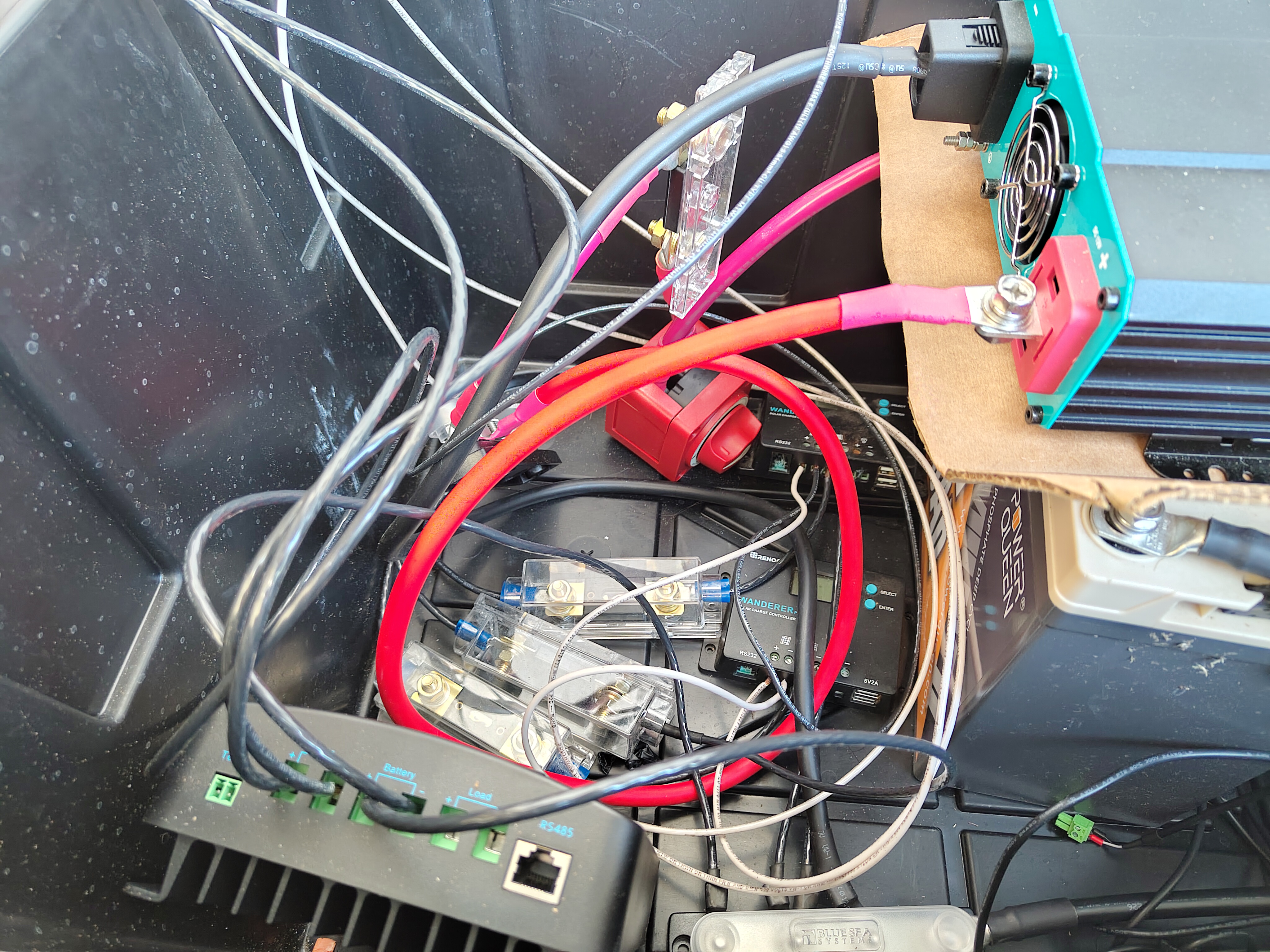

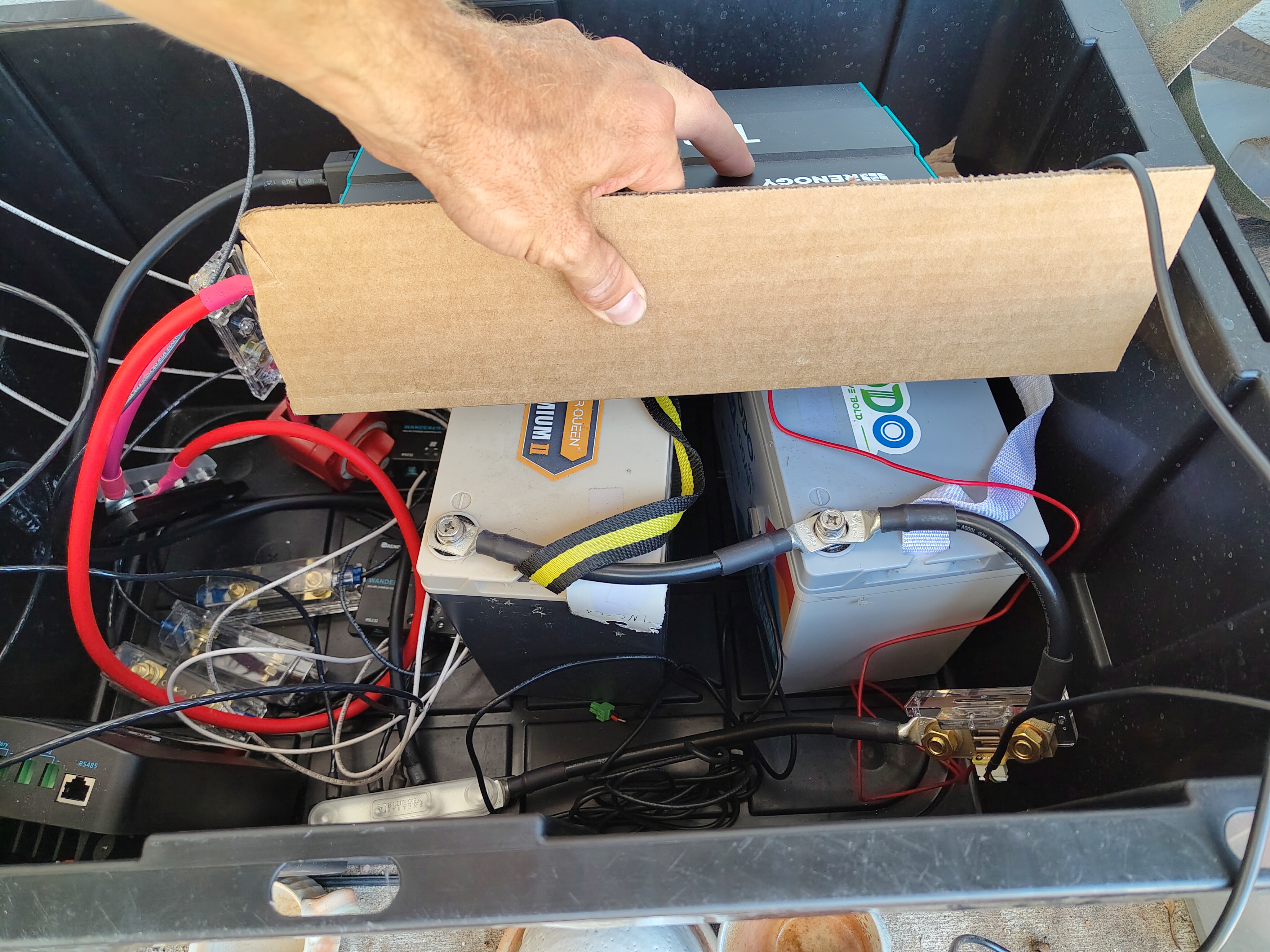

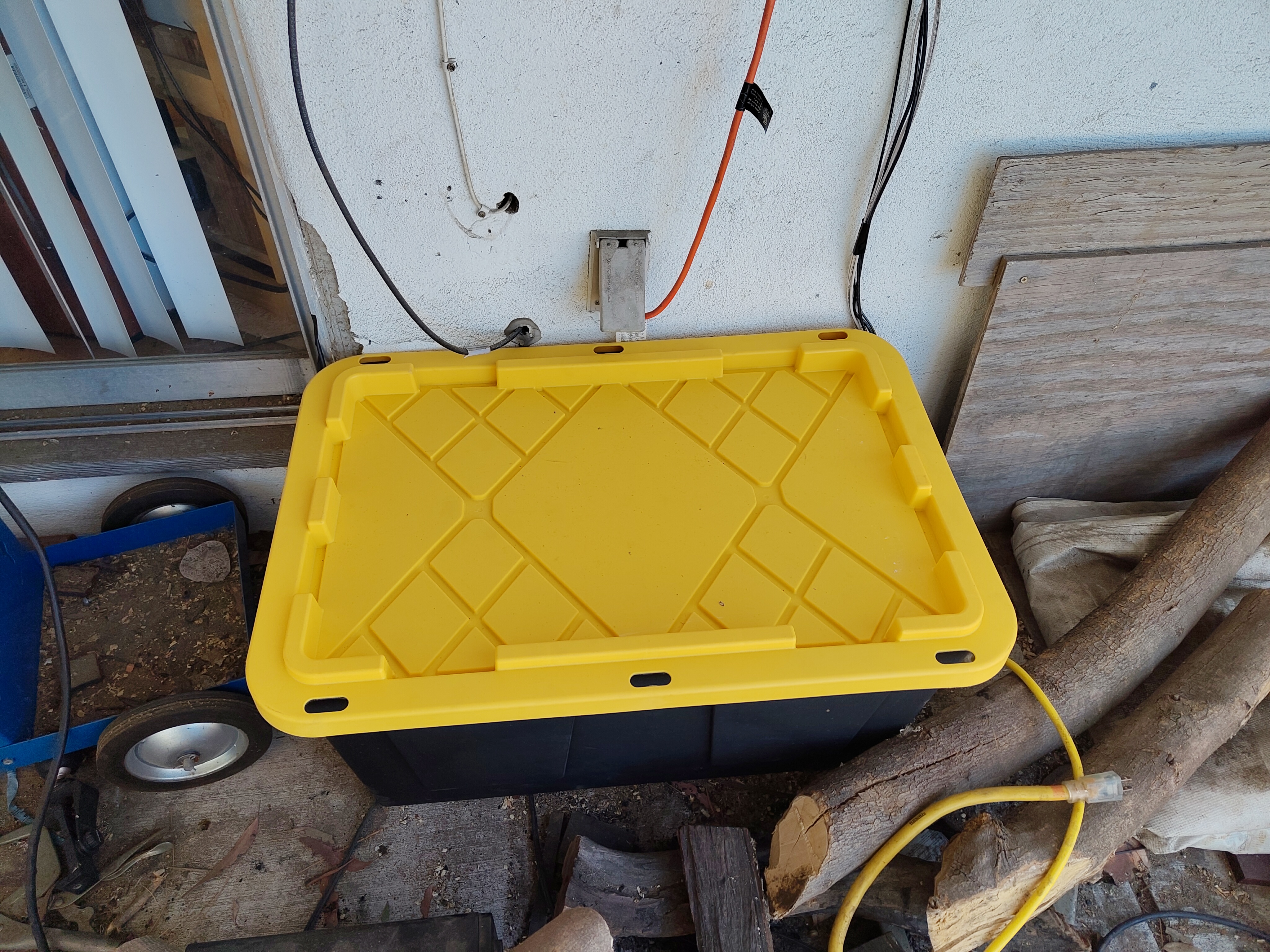

The Plan, Executed

The Output

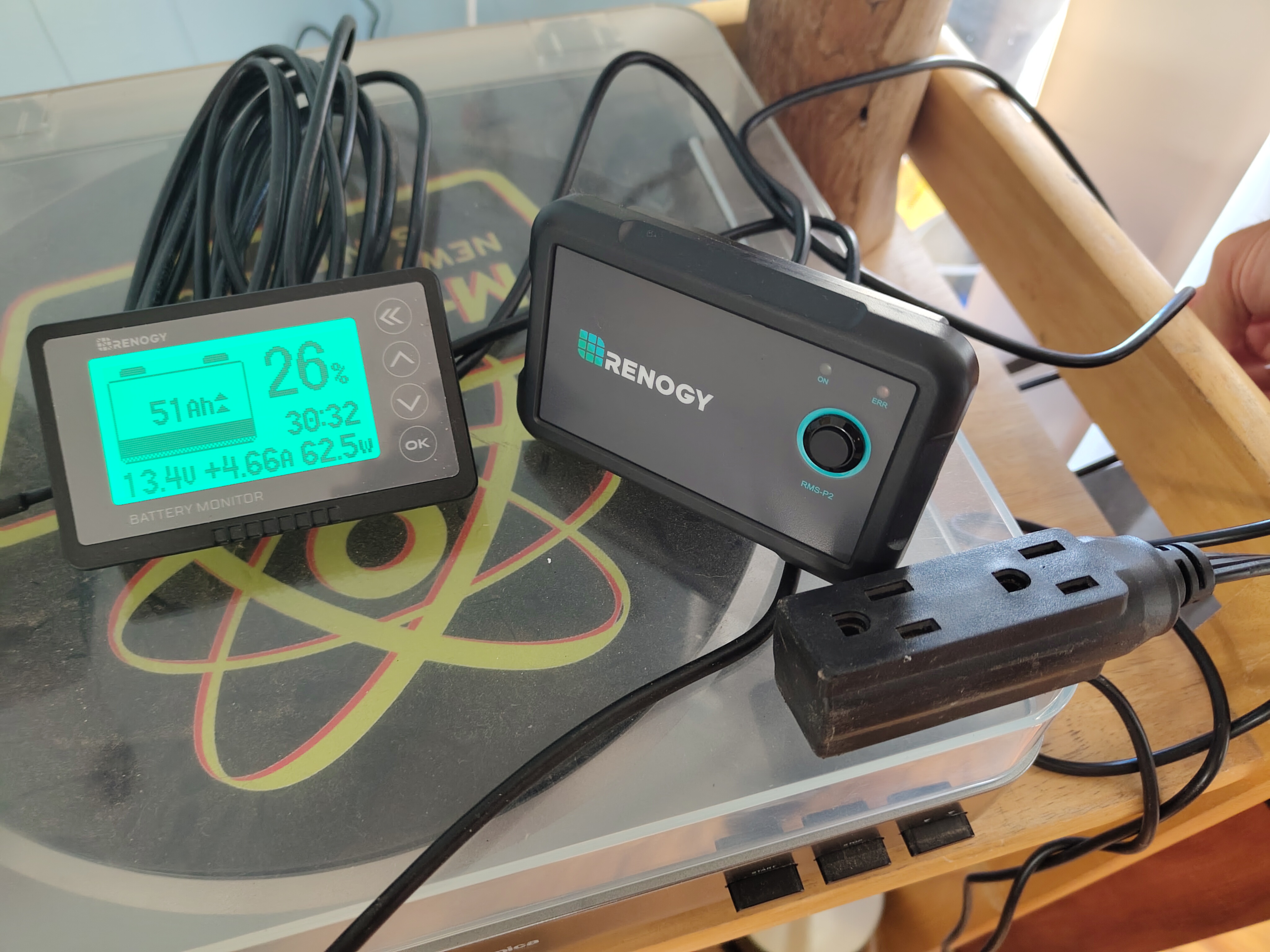

Power output monitor
